AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin 12V outdoor high brightness

AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin 12V outdoor high brightness

نام تجاری: AUO
شماره مدل: G320ZAN02.3
مقدار تولیدی: 10 عدد
قیمت: USD120/PC
جزئیات بسته بندی: بسته بندی صنعتی
شرایط پرداخت: T/T ، W ، Western Union ، MoneyGram
اطلاعات دقیق
محل منبع:
چین
گواهی:
Rohs,CE,FCC
کیفیت:
با نام تجاری جدید
بسته:
بسته بندی صنعتی اصلی
مواد:
شیشه ای اولد
رنگ:
رنگ های 1.06b
مدل:
LCM
سبک:
صفحه نمایش عریض با وضوح بالا 1024*768 پیکسل
روشنایی:
850 سی دی
رابط:
51 پین
نسبت کنتراست:
1500:1
زمان کار:
ساعت 30k
اندازه صفحه نمایش:
32 اینچ
قابلیت ارائه:
3000 قطعه در هفته
توضیحات محصول
AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin 12V outdoor high brightness

AU Optronics Corp. (hereafter called AUO) G320ZAN02.3 is a 32.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: DCI-P3, Adobe RGB, sRGB, Hight Brightness, WLED Backlight, With LED Driver, 10 bit, Glossy , 98% DCI-P3, 99 Adobe RGB. Based on its features, einklcd recommend that this model be applied to Industrial, Medical Imaging, Outdoor High Brightness etc. According to the information stored in einklcd this model mass production on Q2, 2023, Now this model is in production.  We inputted this model's specification on Oct 9 2025 for the first time. If you want to embed G320ZAN02.3 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The G320ZAN02.3 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:AUO
Model P/N: G320ZAN02.3
Diagonal Size: 32.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 3840(RGB)×2160, UHD 137PPI
Pixel Format: RGB Vertical Stripe
Active Area 708.48(W)×398.52(H) mm
Bezel Opening 714.48(W)×404.52(H) mm
Outline Size: 727.3(W)×424.5(H) ×20.98(D) mm
Brightness: 850 cd/m² (Typ.)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on Symmetry
Display Colors: 1.07B 98% DCI-P3
Frequency: 60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Weight: 4.63Kgs (Typ.)

Surface Glare (Haze 0%)
Contrast Ratio: 1500:1 (Typ.) (TM)
Display Mode :AHVA, Normally Black, Transmissive ,IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Response Time: 10/10 (Typ.)(Tr/Td)
Lamp Type: WLED , 30K hours , With LED Driver
Touch Screen:Without
Application:Industrial Medical Imaging Outdoor High Brightness
Signal Interface eDP (4 Lanes) , HBR2 (5.4G/lane) , 51 pins Connector
Input Voltage :12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;
Storage Temp.: -20 ~ 60 °C

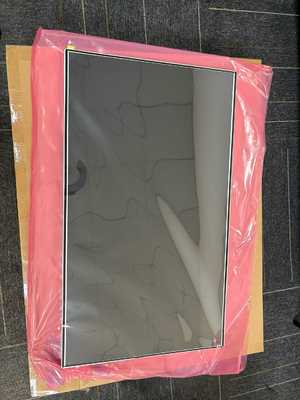

AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin  12V outdoor high brightness 0

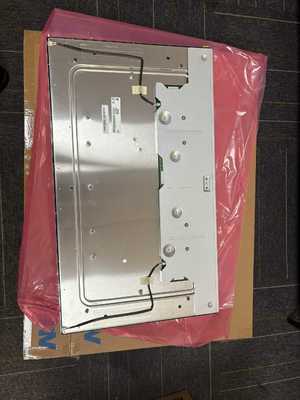

AUO 32inch industrial & Medical Imaging LCD Panel G320ZAN02.3 3840*2160Pixels 137ppi 51pin  12V outdoor high brightness 1
