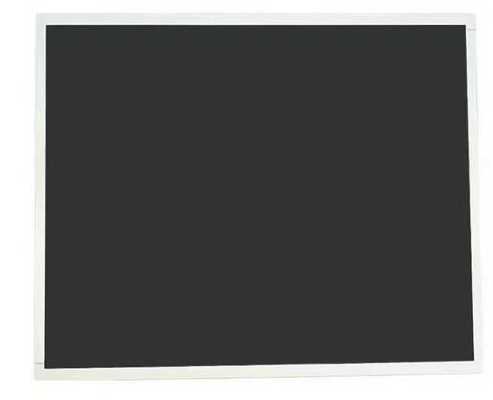

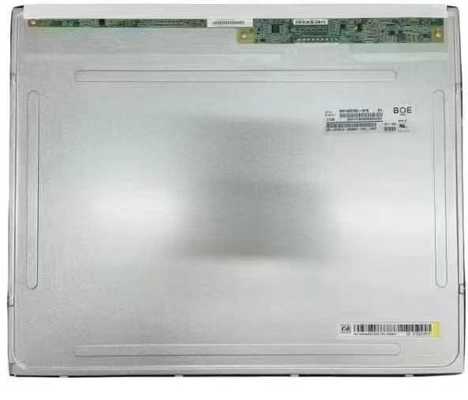

BOE 19Inch Desktop LCD Display Panel MV190E0M-N10 1280x1024Pixels FHD 86PPI lcd tablet 30pin

BOE 19Inch Desktop LCD Display Panel MV190E0M-N10 1280x1024Pixels FHD 86PPI lcd tablet 30pin

BOE Technology Group Co., Ltd. (hereafter called BOE) MV190E0M-N10 is a 19.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Upside I/F, Matte , ES 8.0 compliant. Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q2, 2014, Now this model is in production. We inputted this model's specification on May 27 2014 for the first time, and the latest update on Sep 2 2024. If you want to embed MV190E0M-N10 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The MV190E0M-N10 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:BOE

Model P/N:MV190E0M-N10 Compatible Model 8 Compatible
Diagonal Size:19.0"

Type: a-Si TFT-LCD, LCM
Resolution1280(RGB)×1024, SXGA 86PPI Pixel

Format RGB Vertical Stripe
Active Area 374.784(W)×299.827(H) mm

Bezel Opening 378.8(W)×303.0(H) mm
Outline Dim.396(H)×324(V) ×10.4(D) mm

Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance: 250 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)
View DirectionSymmetry

Response Time: 8/8 (Typ.)(Tr/Td), 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: ADS, Normally Black, Transmissive
Support Color16.7M 72% NTSC

Light Source: WLED [15S2P] , 30K hours , W/O Driver
Weight1.69Kgs (Typ.)

Designed For: Desktop Monitor
Frame Rate: 75Hz

Touch Panel: Without
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply: 5.0V (Typ.)
EnvironmentOperating Temperature: 0 ~ 50 °C ;

Storage Temperature: -20 ~ 60 °C
